How Intumescent Coatings Protect Steel as a Passive Fire Solution
July 14, 2025
Steel plays a crucial role in modern construction, forming the backbone of high-rise towers, commercial facilities, and civic landmarks alike. Left unprotected, exposed steel can lose its load-bearing capacity rapidly when exposed to elevated temperatures, leading to potential collapse and grave safety risks. By incorporating fire-resistant measures early in design, engineers can safeguard both structure and occupants against unpredictable fire events.
Intumescent coatings represent a streamlined yet powerful approach to passive fire protection. These specialised layers swell when heated, forming an insulating char that delays steel’s temperature rise under fire exposure. Their versatility allows application on beams, columns, and complex architectural elements, blending safety with visual appeal.

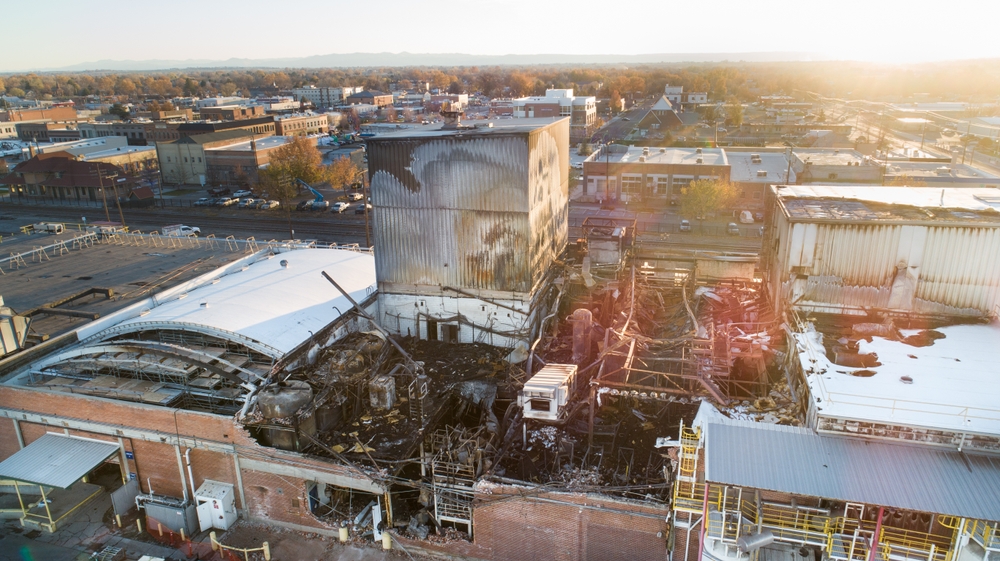

Production plant damaged by fire.
Why Steel Needs Fire Protection in Buildings
Steel’s high thermal conductivity allows rapid heat transfer, which can compromise its structural integrity within minutes of a blaze. Unchecked temperature rises lead to metal softening and deformation, threatening overall stability in critical structural frames. Implementing robust fire protection systems is therefore essential to maintain steel’s strength during emergency conditions.
Heat-Induced Loss of Strength
Steel softens dramatically once core temperatures exceed around 550°C, undermining load-bearing capacity.
Rapid temperature increases reduce steel’s yield strength by over half, risking buckling under normal loads. Steel elements bent or warped under heat can no longer support designed weights safely.
Even brief fire exposure can accelerate corrosion processes, further weakening connections and joints. Ongoing degradation may persist long after flames subside if protective coatings are absent.
Localised overheating at connections often triggers progressive failure across entire frames. Protecting every surface helps to prevent cascade effects in adjoining members.
Structural Failure Risks
Unprotected steel members can reach critical thresholds in as little as 10–20 minutes of fire exposure.
Deflection under fire load can cause floor sagging and collapse, endangering evacuation routes and refuge areas. Maintaining intact floor plates is vital for safe egress.
Columns weakened by heat may buckle outward or inward, depending on surrounding supports. Lateral instability poses serious hazards in multi-story layouts.
Partial loss of support can overload adjacent elements, leading to “domino” collapses. Passive protection aims to preserve structural continuity under distress.
Safety of Occupants
Fire protection helps extend safe evacuation windows for building users and first responders.
Delaying structural failure provides more time for occupants to exit and for firefighters to locate and contain the fire. Greater resilience reduces fatalities and injuries.
Reducing heat transfer to occupied zones can slow smoke spread and toxic gas accumulation. Cooler surfaces also lessen secondary ignition risks.
Maintaining safe zones for longer supports coordinated rescue operations. Passive measures complement active alarms and sprinklers for comprehensive safety.
What Is an Intumescent Coating?
Intumescent coatings are specially engineered mixtures that expand dramatically when exposed to heat, forming a thick, insulating char layer. They consist of binders, blowing agents, and fillers that react at predetermined temperatures to create protective foam. By trapping gases and slowing heat flow, these coatings shield underlying steel for extended periods.
Composition of Intumescent Paints
Binders hold the formulation together and adhere firmly to steel surfaces.
Most coatings use epoxy or acrylic resins, chosen for their adhesion and flexibility under heat. These binders also influence application methods and curing requirements.
Blowing agents decompose at elevated temperatures, releasing gases that cause the coating to expand. Common agents include ammonium polyphosphate or melamine derivatives.
Fillers such as mica or vermiculite reinforce the char structure, providing rigidity and thermal resistance. Their particle size distribution affects expansion uniformity.
Mechanism of Foaming Action
Heating triggers chemical reactions that release inert gases, forming a swollen foam.
The blowing agent’s decomposition temperature is calibrated to fire scenarios, typically between 150°C and 250°C. Controlled expansion ensures consistent char thickness.
The binder matrix softens and allows trapped gases to create interconnected cells. This cellular structure slows heat penetration by reducing conduction pathways.
As temperatures rise further, the char layer hardens, offering mechanical strength against collapse. It remains in place even under direct flame impingement.
Types of Intumescent Products
Coatings are available in water-based and solvent-based formulations to suit different project needs.
Water-based products emit fewer volatile organic compounds, promoting safer application in occupied buildings. They require longer drying times and careful humidity control.
Solvent-based systems dry faster and may achieve higher film builds per coat, ideal for remote or minimal-access sites. Managing emissions and worker safety demands adequate ventilation.
High-temperature variants cater to specialised environments such as industrial furnaces or petrochemical plants. They withstand repeated thermal cycling without losing protective properties.
How Intumescent Coatings React During a Fire
Once exposed to flame or radiant heat, intumescent coatings transform from a thin film into a resilient, insulating barrier. The expansion process may produce up to 50 times the original volume, creating a char layer that insulates steel against high temperatures. This dynamic response is key to slowing heat transfer and prolonging structural integrity.
Thermal Insulation Formation
The swollen char acts like a thermal sponge, trapping air and slowing heat flow.
Effective cell structure minimises convection and conduction within the coating layer. Low thermal conductivity means the steel beneath heats slowly.
Even under direct flame, the char maintains its form for the rated period, often between 30 and 120 minutes. Protection time aligns with building evacuation plans and firefighting efforts.
Post-fire, the char residue can be removed and recoated, restoring fire resistance without replacing structural members.
Char Layer Development
The thickness of the char directly influences its insulating performance.
Foamed layers typically reach 10–20 mm thickness, depending on coating type and film build. Thicker char extends protection but may require multiple coats.
Uniform expansion prevents weak spots where heat could bypass the barrier. Quality control measures during application ensure consistent coverage.
Once formed, the char adheres tenaciously to surfaces, resisting spalling or delamination under flame. Robust bonds help maintain insulation under turbulent fire conditions.
Temperature Thresholds Triggering Reaction
Intumescence initiates at specific temperature ranges to optimise performance.
Early expansion occurs around 150°C, creating an initial protective layer before critical steel temperatures are reached. Prompt reaction minimises steel heat gain.
Full expansion is realised by 250–300°C, offering maximum insulation just as fire intensity peaks. Synchronised timing ensures peak performance during the most dangerous phases.
Beyond 500°C, the char exhibits its strongest mechanical properties, counteracting aggressive fire loads. Some formulations include ceramic enhancers to boost high-temperature resistance.
Application Methods and Considerations
Proper preparation and application are essential to achieve intended fire-resistance ratings. Factors such as surface profiling, environmental conditions, and coating thickness play significant roles in performance. By following manufacturer guidelines and industry best practices, contractors can ensure reliable protection across diverse structures.
Surface Preparation Requirements
Steel must be free of rust, oil, and loose particles before coating begins.
Grit blasting to a uniform profile ensures strong mechanical bonding between coating and substrate. Specified anchor patterns improve adhesion and reduce delamination risks.
Degreasing and drying procedures remove contaminants that could interfere with film formation. Humidity controls prevent surface blush on water-based systems.
Masking adjacent elements safeguards windows, fixtures, and finishes from overspray. Attention to detail reduces remedial work and cost overruns.
Application Techniques
Spray, brush, or roller methods can be chosen based on project scale and site constraints.
Airless spray delivers consistent film builds rapidly, ideal for large-scale steel frames in warehouses or auditoriums. Calibration ensures even coverage without runs or sags.
Brush and roller application benefits tight corners and small projects, offering precise control over film thickness. Skilled operators adjust stroke length and pressure for uniform layers.
Multi-coat strategies allow gradual build-up to target dry film thickness, improving adhesion between layers. Intercoat inspections help verify compliance with specified tolerances.
Drying and Curing Times
Coatings require adequate time and conditions to develop full mechanical properties.
Drying schedules depend on coating type, ambient temperature, and relative humidity. Cooler or more humid conditions may extend cure times significantly.
Touch-dry status indicates surface readiness, but full cure may take several days to weeks in thick applications. Premature exposure to moisture or mechanical stress can compromise performance.
Post-cure inspections confirm film integrity and thickness using dry film gauges. Verification against manufacturer datasheets certifies that fire-resistance ratings will be met.

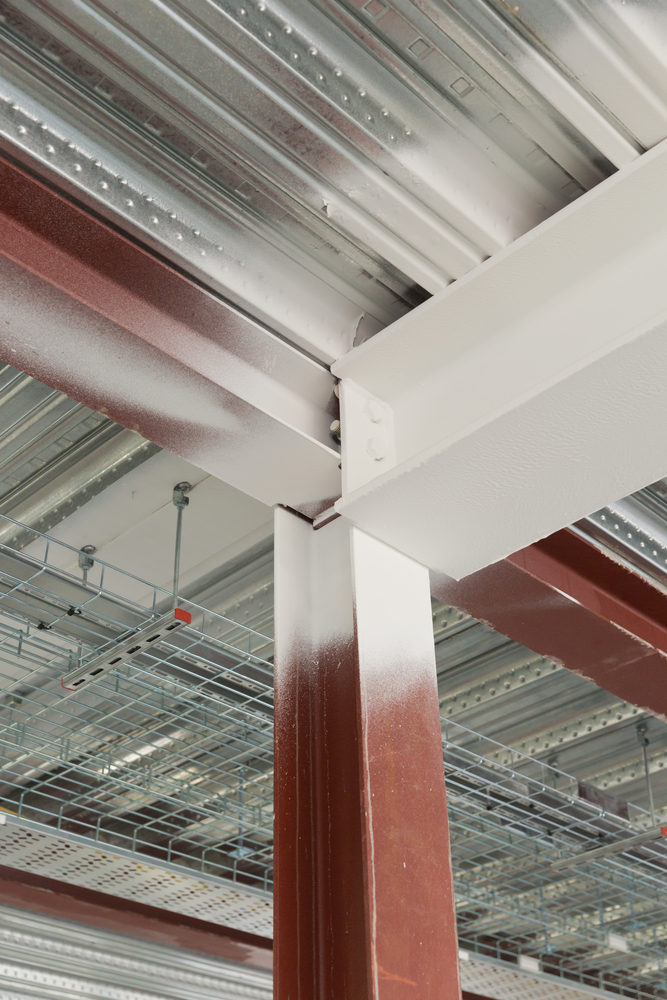

Intumescent paint sprayed onto the metal decking around the main column and supporting beam.
Benefits of Using Intumescent Coatings
Beyond fire protection, intumescent coatings offer aesthetic flexibility and minimal space requirements compared to bulky alternatives. They integrate seamlessly into architectural finishes, preserving clean lines and design intent. Long-term resilience further enhances value by reducing maintenance and replacement cycles.
Aesthetic Advantages
Coatings can be tinted in a wide spectrum of colours to blend with surrounding décor.
Low-viscosity formulations allow smooth, uniform surfaces that resemble conventional paint finishes. Visible steel becomes an architectural feature rather than an exposed hazard.
Custom topcoats provide sheen control, from matte to gloss, ensuring design consistency across all structural elements.
Clear or semi-transparent options highlight steel’s natural texture while maintaining fire-resistant capability.
Longevity of Protection
High-quality coatings resist environmental wear, maintaining integrity over decades.
UV-stable binders prevent chalking and discoloration under prolonged sun exposure. Regular inspections confirm ongoing performance without frequent recoating.
Moisture-resistant formulations discourage corrosion beneath the coating, extending steel life in marine or humid settings.
Abrasion-tolerant variants protect against mechanical damage in high-traffic areas such as platforms or bridges.
Cost-Effectiveness Over Time
Although the initial outlay may exceed some alternatives, lifecycle savings are substantial.
Reduced need for bulky fire-resistant boards or cladding lowers material and labour costs. Space savings translate into more rentable or usable floor area.
Minimal maintenance requirements and straightforward damage remediation cut long-term expenses. Only spot repairs are needed if the char layer is compromised.
Enhanced asset longevity and compliance avoidance of fines or insurance penalties yield significant financial returns.
Fire Ratings, Compliance, and Australian Standards
Meeting local regulations and recognised testing protocols is critical to ensure legal and functional compliance. Australian standards outline clear criteria for fire-resistance ratings, testing methods, and documentation. Adhering to these frameworks upholds occupant safety and supports project approvals.
Australian Fire Resistance Standards
Standards such as AS 1530.4 and AS 4072.1 define test methods and performance benchmarks.
AS 1530.4 prescribes furnace tests for load-bearing members, establishing time-based ratings (e.g., FRL 60/60/60).
Manufacturers’ warranties often require proof of application conditions and adherence to specified procedures.
Digital logs streamline compliance checks during building recertification or sale processes.
When to Choose Intumescent Coatings Over Other Solutions
Selecting the right passive fire solutions involves balancing structural needs, design intent, and budget constraints. Intumescent coatings excel where minimal visual impact and restricted clearances are priorities. In other cases, alternative materials may offer benefits in initial cost or specific environmental conditions.
Comparison with Fire-Resistant Boards
Boards provide robust protection but often add significant bulk and weight.
Installing fire-resistant cladding can reduce headroom and require additional framing support.
Coatings adhere directly to steel without increasing section sizes, preserving architectural proportions.
Maintenance of boards may involve inspecting fixed panels and resealing joints, whereas coatings allow simple spot repairs.
Suitability for Complex Structures
Curved sections, hollow columns, and intricate profiles present application challenges.
Sprayed intumescent systems conform easily to nonlinear geometries without custom cutting or shaping.
Thin steel members benefit from even, full-coverage coatings that adapt to variations in surface contours.
Access restrictions in retrofit scenarios can be overcome using remote spray equipment or brush-on touch-up methods.
Maintenance Compared to Alternatives
Long-term upkeep influences the total cost of ownership and system reliability.
Coatings often retain protective properties for 15–20 years before major recoating is required.
Regular visual inspections can identify damage zones quickly, allowing targeted repairs.
Other solutions may demand full panel removal for servicing, increasing downtime and labour.
Establishing effective passive fire protection ensures that steel structures remain true to their design intent while safeguarding occupants and assets. Intumescent coatings deliver a compelling blend of performance, aesthetics, and durability, making them a preferred choice for architects and engineers alike.
Their proven ability to maintain fire-resistance ratings under rigors testing, coupled with straightforward application and maintenance, provides confidence across a wide range of projects. By understanding when and how to apply intumescent systems, stakeholders can achieve robust safety outcomes without compromising on design or functionality.
