How Passive Fire Protection Helps Contain Fires Before Help Arrives
July 15, 2025
Early moments during a fire can determine whether damage remains minimal or becomes catastrophic. Passive fire protection plays a crucial role in those first few minutes, providing built-in resistance that delays the spread of smoke and flame. These systems give occupants more time to evacuate and allow emergency crews to respond before conditions worsen.
Robust design measures such as fire-resistant walls, ceilings, coatings, and seals are integrated into the structure from the outset. Unlike active systems that require power or activation, passive fire protection works silently in the background. It remains in place at all times, maintaining safety without disrupting normal use.
By embedding these protective features throughout the building, designers and engineers create layers of defence that support a safer environment. These hidden safeguards reduce the risk of collapse, limit property damage, and most importantly, help protect lives when seconds count.
Why Early Fire Containment Is Crucial
Preventing a small ignition from becoming an uncontrolled blaze hinges on swift restraint. Every second counts when flames start to spread, since heat and smoke can rapidly render escape routes impassable. Effective containment strategies offer vital breathing space for both evacuation and emergency response.
Recognising Fire Behaviour in Its Initial Stage
Early detection often reveals signs that a fire is starting to smoulder rather than roar immediately.
Visible embers may glow faintly before flames appear, indicating heat concentration in one area deep within materials. These warning signs allow systems designed to respond automatically to activate and hold the fire in check for longer.
Subtle smoke patterns can form before thick plumes emerge, signalling that oxygen levels and material composition are just beginning to fuel combustion. Addressing these signs promptly can dramatically slow the fire’s growth.
Heat distortion may be barely visible on metal frames or glass before intense flames develop. Passive elements rely on temperature thresholds to expand or insulate, buying valuable extra time for intervention.
Preserving Escape Routes and Access Points
Containing fire at its source keeps corridors and stairwells clear of life-threatening hazards.
Sealed door assemblies close tightly when fire is detected, preventing smoke infiltration and maintaining breathable air for evacuees. These automatic closures ensure occupants can reach safe exits without encountering toxic fumes.
Protected stair shafts guard against heat transfer, so residents can descend without walls becoming dangerously hot to the touch. Resistance to high temperatures keeps railings and structural elements reliable during evacuation.
Fire-resistant glazing in critical windows holds back smoke and flame, helping emergency personnel find safe entry points. Remaining intact under stress ensures teams can access the blaze without being forced to breach barriers.
Reducing Fire Growth Through Material Selection
Using inherently resistant materials forms the foundation of effective containment.
Dense boards and panels impede flame passage, so fire spreads at a far slower pace compared with untreated surfaces. Their natural composition absorbs heat energy and delays ignition of adjacent structures.
Cementitious coatings applied to beams and trusses create a protective layer that resists charring, helping maintain load capacity longer under extreme heat. This passive treatment safeguards the integrity of the whole framework during crucial response windows.
Mineral-based insulation fills cavities and air gaps, preventing hidden fires from flaring up behind walls. Its non-combustible nature limits potential fuel sources deep within partitions.
What Is Passive Fire Protection?
Built-in features that operate without human input define this approach to safeguarding structures from fire. Instead of relying solely on active systems, automatic resistance layers are integrated into walls, floors, and service penetrations. Their purpose is to slow fire progression, ensuring other measures have time to engage or occupants have time to escape.
Understanding Passive versus Active Measures
Differentiating between continuous, structural safeguards and manually triggered systems clarifies overall strategy.
Active installations such as sprinklers and alarms require an external power source or water supply, which may be compromised during a major event. By contrast, the structural components remain unaffected and continue to function regardless of building conditions.
Automatic doors and dampers respond solely to heat sensors, activating even if electrical circuits fail. Their reliance on thermal triggers ensures dependable performance when it matters most.
Structural fireproofing maintains its protective properties throughout a building’s lifespan without regular intervention. Once applied, it demands minimal maintenance compared with systems needing mechanical testing.
Key Elements Incorporated in Design
Core components of this system work together to provide a multilayered shield against fire.
Fire-rated walls and floors compartmentalise spaces, preventing fire from leaping between rooms and levels rapidly. Each fire zone becomes an isolated area, slowing overall progression.
Intumescent coatings swell when heated, forming an insulating char that shields steel from extreme temperatures. This chemical reaction is passive yet highly effective at maintaining load-bearing capacity.
Seals around service penetrations, such as cables and pipes, expand under heat to close gaps, blocking fire and smoke from spreading through hidden channels. These solutions address complex penetrations that could otherwise form fire paths.
Benefits of Passive Fire Protection
Incorporating these measures yields lasting returns in safety and resilience.
Reduced property damage translates to lower repair bills and shorter downtime after an incident. Structures equipped with passive systems often resume normal operations much sooner than those relying solely on active defences.
Insurance premiums frequently decrease for properties recognised as having high-quality containment installations. Demonstrable resistance ratings support favourable underwriting assessments.
Enhanced occupant confidence stems from transparent, built-in safeguards that work without daily attention. Knowing that walls and floors will resist fire provides peace of mind for users and managers alike.
How Passive Fire Protection Slows the Spread
Fundamental to its role is delaying fire growth by interrupting its natural pathways. Strategic placement of barriers and reactive materials disrupts flame momentum, isolating areas at risk and maintaining compartment integrity. Together, these interventions turn a potential disaster into a contained scenario.
Compartmentation Techniques
Strategic division of a building into multiple zones limits fire’s ability to move unhindered.
Fire compartments delineated by specialised walls and floors act as standalone units, so a fire in one section cannot instantly engulf adjacent areas. This calculated design allows time for targeted firefighting efforts.
Penetration seals ensure that services running between zones do not compromise barrier performance. Their rapid expansion under heat closes off unintended fire paths.
Structural joints equipped with fire-resistant covers absorb building movement while maintaining separation. Flexibility paired with resistance prevents cracks from undermining protective layers.
Insulating Structural Steel
Treating metal components with specialised coatings preserves their strength under intense heat.
Cementitious sprays adhere to beams and trusses, forming a heat-resistant blanket that slows temperature rise. Maintaining steel around its critical limits prevents premature buckling.
Intumescent paint layers activate at preset thresholds, swelling into a protective foam that insulates core metal. The combination of chemical reaction and thermal barrier extends service life during a blaze.
Encasing columns within fire-rated board inclosures adds an extra layer of defence, ensuring vertical supports remain reliable. This safeguard is crucial for high-rise and heavy-load structures.
Fire-Retardant Surface Treatments
Surface applications form a first line of defence that resists flame contact.
Plasterboard facings infused with fire-resistive additives do not ignite easily and slow down heat transfer. Their use on ceilings and walls boosts overall containment performance.
Treated joinery and timbers carry special coatings that bond chemically to wood fibres, reducing flammability while preserving appearance. These finishes remain transparent yet effective throughout their lifespan.
Fabrics and upholstery may be selected for inherent retardant properties, ensuring soft furnishings do not fuel a fire’s growth. Typical interior elements are often overlooked but can be addressed early in design.
Protecting Structural Integrity Until Help Arrives
A building’s skeleton must withstand heat long enough for external resources to intervene safely. By maintaining strength under duress, passive solutions prevent catastrophic collapse and preserve escape and access routes. In turn, emergency teams can tackle the fire without risking structural failure.
Encapsulation of steel within protective cladding preserves its yield strength during high-temperature exposure. The physical barrier slows heat conduction to the inner core.
Concrete cover depths are specified to a standard that ensures thermal mass absorbs heat without rapid temperature spikes. This intrinsic quality prevents cracking and spalling under load.
Composite floors incorporating fire-rated boards remain stable, providing a platform for safe egress and firefighting operations. Their layered structure combines insulation with strength.
Minimising Structural Degradation
Limiting irreversible damage ensures post-incident repair efforts are feasible and cost-effective.
Passive measures prevent charring of wooden beams beyond superficial layers, allowing salvage of structural timber if inspected promptly. Restorative treatments can often renew compromised sections without full replacement.
Heat-resistant mortar mixes within block walls maintain bond strength, avoiding collapse when mortar joints would otherwise fail. The continuity of masonry units holds form under intense conditions.
Fire-rated sealants preserve joint integrity, preventing expansion of fissures that could otherwise weaken entire assemblies. Reapplication after an incident restores full protection.
Facilitating Safe Intervention by Responders
Structural resilience supports firefighting tactics and evacuation assistance.
Protected stair cores allow firefighters to enter from multiple levels with confidence in surrounding walls. Consistent protection along vertical shafts ensures teams can ascend without unexpected failures.
Roof structures treated for fire resistance permit water application from above, broadening attack options. Maintaining deck integrity avoids sudden cave-ins.
Load-rated floors withstand equipment staging, so heavy rescue tools can be positioned near affected zones. This support enables specialist operations such as cutting or breaching without risk.
The Role of Fire-Rated Barriers and Seals
Discrete elements like barriers and seals form critical junctures where fire might otherwise leap wide. Their design concentrates on every conceivable opening, preventing smoke and flames from bypassing larger compartments. In combination, these details optimise overall containment.

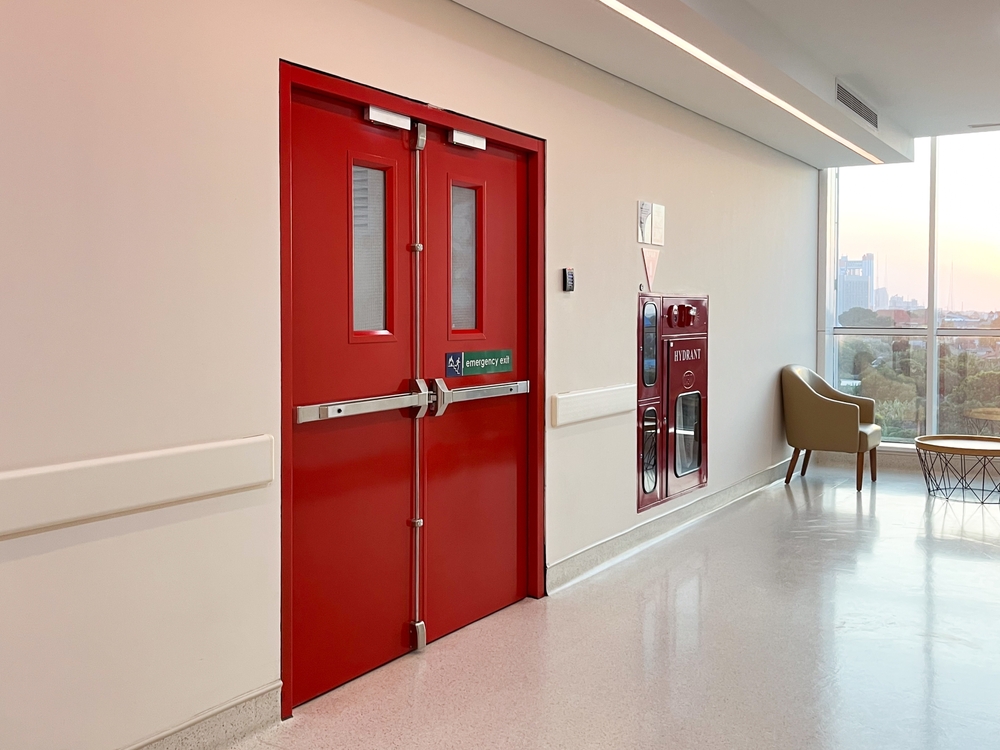

Fire-Rated Doors and Frames
Precision-engineered doors protect key routes with tested resistance levels.
Self-closing mechanisms ensure doors remain in their protective position without human action. Hinges and seals maintain an effective barrier under high heat.
Vision panels utilise specialised glass that resists cracking or falling out, allowing safe observation of developing conditions. They balance transparency with rigors performance standards.
Door shutdown sequences integrate with building alerts, closing multiple units instantly when thresholds are reached. This rapid response forms a protective grid around evacuee pathways.
Compartmentation Seals for Pipes and Cables
Services often compromise barrier performance unless properly sealed.
Intumescent collars expand radially when heated, closing off the space around metal penetrations. Their design accommodates thermal expansion of pipes while maintaining a tight seal.
Fire-stopping mortar packs and putty pads fill irregular gaps left by varied service sizes, providing consistent resistance. These materials bond to multiple substrates, offering versatility for retrofits.
Preformed fire collars clip securely around plastic conduits, ensuring they do not become fuel paths when heat melts pipe walls. Their simple installation reduces human error.
Joint and Movement Gap Solutions
Buildings must accommodate movement without forfeiting fire resilience.
Fire-resistant joint sealants remain flexible under normal conditions but cure into solid barriers under heat exposure. This dual behaviour safeguards against cracking during shifts.
Glazing tapes applied around window perimeters fill irregularities, preventing smoke seepage while supporting thermal expansion. They maintain transparency without sacrificing safety.
Cover plates and fire-rated baffles bridge seams in partition systems, ensuring continuous containment across surfaces. Their modular design allows for regular inspection and replacement.
Compliance with Fire Safety Regulations
Adhering to mandated standards underpins the legality and effectiveness of containment solutions. A clear understanding of performance requirements and testing methods ensures every component delivers its intended function. Moreover, certified installations support peace of mind for stakeholders responsible for building safety.
Understanding Relevant Standards and Codes
Regulatory frameworks define minimum performance levels for passive systems.
National regulations specify fire resistance durations for structural elements, varying by building type and occupancy risk. Designers must select materials tested to meet or exceed these timeframes.
Australian testing methods simulate extreme conditions in laboratory furnaces, providing data on how coatings and assemblies behave under stress. Certification bodies publish these results for public reference.
Documentation of installed systems, including product certificates and inspection records, forms part of compliance evidence during audits. Diligent record keeping streamlines approvals and renewals.
Importance of Quality Assurance and Testing
Routine verification ensures installed measures continue to meet performance expectations.
Factory production control schemes monitor the consistency of fire-rated products, confirming every batch aligns with tested formulations. Non-conforming items are rejected before reaching the site.
On-site inspections by accredited auditors verify correct installation of seals, barriers, and claddings. Thereafter, periodic reviews catch any degradation or unauthorised alterations.
Integrity testing, such as smoke leak checks for door assemblies, reveals subtle defects before they become hazards. Simple testing methods help maintenance teams keep systems in top condition.
Documentation and Handover Requirements
Clear protocols govern the transition from construction to operation phases.
Detailed fire safety manuals outline locations of all passive protection elements, along with maintenance schedules and responsible parties. Accessible documentation aids facility managers in upholding safety.
As-built drawings highlight compartment boundaries and service penetrations, guiding future renovations without compromising containment. Accurate plans prevent inadvertent breaches.
Sign-off procedures involve performance declarations by specialist installers, ensuring accountability for every passive system component. These formal endorsements seal the certification process.
Why Passive Fire Protection Shouldn’t Be Overlooked
Integrated containment solutions form the bedrock of comprehensive safety strategies. Their enduring reliability and low maintenance demands complement more visible active measures. Neglecting these silent heroes risks leaving buildings vulnerable at their most critical moments.
Cost-Effectiveness Over a Building’s Lifecycle
Investing in structural safeguards yields savings far beyond initial installation.
Lower repair and restoration bills follow incidents, as resilient systems minimise irreversible damage. Rapid recovery translates to reduced operational downtime and revenue loss.
Insurance incentives frequently reward properties with high containment ratings through premium discounts. Premium reductions often offset installation costs over time.
Maintenance requirements are generally limited to periodic inspections and minor repairs, avoiding high ongoing expenses. The longevity of passive materials ensures consistent performance with minimal intervention.
Enhancing Overall Safety Culture
Visible commitment to containment measures fosters greater awareness among occupants.
Clear signage and accessible manuals around passive elements educate users on their importance, reinforcing safety-conscious behaviour. Regular drills emphasise reliance on these built-in protections.
Collaboration between design teams, installers, and facility managers creates a shared sense of responsibility for ongoing performance. Stakeholders remain engaged when systems are transparent and well documented.
Public confidence in buildings equipped with robust containment strategies grows, supporting tenancy and occupancy rates. Demonstrable safety credentials underpin reputational strength.
Future-Proofing Against Evolving Risks
Architectural trends and material innovations continually reshape fire safety challenges.
Passive strategies remain adaptable to new building forms, from mixed-use towers to lightweight prefabricated developments. Their principles apply regardless of aesthetic considerations.
Emerging materials such as advanced composites and hybrid claddings integrate seamlessly with traditional systems, enhancing containment without redesigning fundamentals. Innovation complements proven techniques.
Regulatory updates often raise performance benchmarks, but established containment frameworks can be upgraded progressively to meet tighter standards. Incremental improvements preserve investment value.
In recognising the indispensable role of passive containment features, stakeholders affirm a commitment to safety that outlasts transient fire events. Built-in barriers, coatings, and seals form a cohesive defence that protects lives and assets long before external help arrives. Upholding these measures through design, installation, and maintenance nurtures a resilient environment prepared for the unexpected.
By championing early fire restraint at every level (from material choice to regulatory compliance), communities reinforce the foundations of well-being and continuity. The silence of these safeguards belies their strength, offering steadfast protection that endures. Advocating for comprehensive containment solutions ensures every building stands ready to face fire’s unforgiving challenge and emerge with integrity intact.
